TP-LINK PCI-E to LAN 1000MBPS

תיאור

HARDWARE FEATURES

Standards and Protocols IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Interface PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Status

Data Rates 10/100/1000Mbps for Half-Duplex mode,

20/200/2000Mbps for Full-Duplex mode

Dimensions ( W x D x H ) 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)

Flow Control IEEE 802.3x Flow Control (Full-Duplex)

OTHERS

Certification FCC, CE, RoHS, BSMI, VCCI

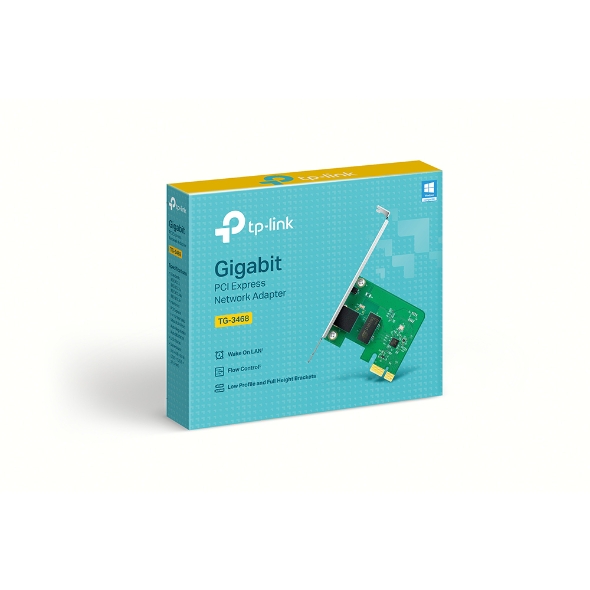

Package Content Gigabit PCI Express Network Adapter TG-3468

Quick Installation Guide

Resource CD

Low-profile Bracket

System Requirements Windows 11/10/8.1/8/7

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
